Why it’s done this way

• Recording minimal frame data avoids storing raw input history or full physics state.
• Fixed-rate sampling (60 FPS) guarantees deterministic rewind and ghost playback.
• Explicit animation parameter capture prevents visual desync during playback.
• Bounded memory usage allows repeated time loops without runtime allocation spikes.

How it works

• PlayerRecordingFrame
  • Stores position (Vector3), rotation (Quaternion).
  • Records animator X/Y movement speeds and sprite flip state.
  • Captures interaction input for deterministic replay.
  • Contains only the minimum data required to reproduce player intent and visuals.
• Recording loop
  • Runs in FixedUpdate at 60 FPS for consistent timing.
  • Recording is disabled during rewind playback to prevent data corruption.

Memory Characteristics

• Per-frame size:
  • Position (Vector3) — 12 bytes
  • Rotation (Quaternion) — 16 bytes
  • Animation parameters & flags — ~8 bytes
  • Total raw data: ~36 bytes per frame
  • Including C# object overhead: ~64 bytes per frame
• Per 30-second loop:
  • 60 FPS × 30 seconds ≈ 1,800 frames
  • ~64 bytes × 1,800 frames ≈ ~115 KB per recording
• Memory safety:
  • Recordings are explicitly cleared after rewind completion.
  • All frame lists are released on object destruction.
  • Prevents memory accumulation across repeated loops.

Code Snippets

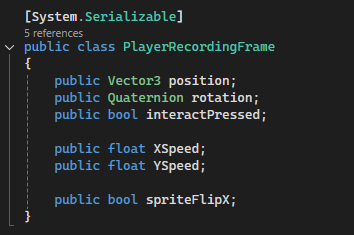

• PlayerRecordingFrame – lightweight per-frame data container.

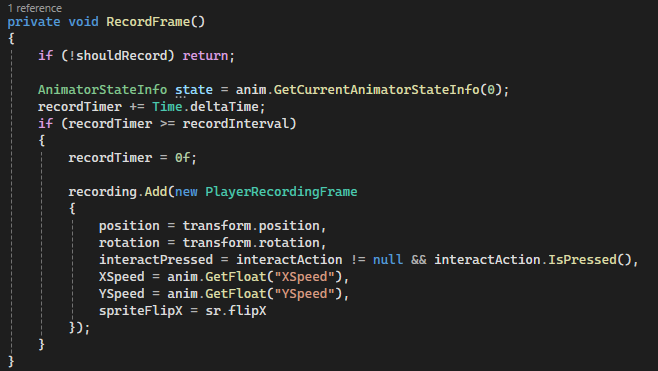

• RecordFrame() – captures and stores frame snapshots.
• ClearRecording() / OnDestroy() – enforces bounded memory usage.

Why it’s done this way

• Centralized loop logic keeps timing, rewinds, and ghost management consistent.
• Limits the number of active ghosts to avoid clutter and performance drops.
• Ensures seamless transitions between player and ghost playback states.
• Memory-conscious: old recordings and ghost objects are cleared on loop reset.

How it works

• Loop timing:
  • Tracks elapsed time per loop using loopTimer.
  • Triggers rewind and ghost spawning when loopDuration is reached.
• Ghost lifecycle:
  • Player recording is cloned to create a ghost at loop end.
  • Ghosts replay the recorded frames with interpolation for smooth motion.
  • Old ghost objects are destroyed if the maximum ghost limit is reached.
• Rewind coordination:
  • Player and ghosts enter a rewind state simultaneously.
  • WaitUntil ensures rewinds complete before new ghost playback begins.
  • Recording resumes automatically after rewind completion if under ghost limit.
• Memory & safety:
  • Recordings are cleared from the player recorder after spawning a ghost.
  • Ghost lists are cleared on level reset or destruction.
  • Prevents unbounded memory growth across repeated loops.

Code Snippets

• Update() – tracks loop time and triggers rewind.

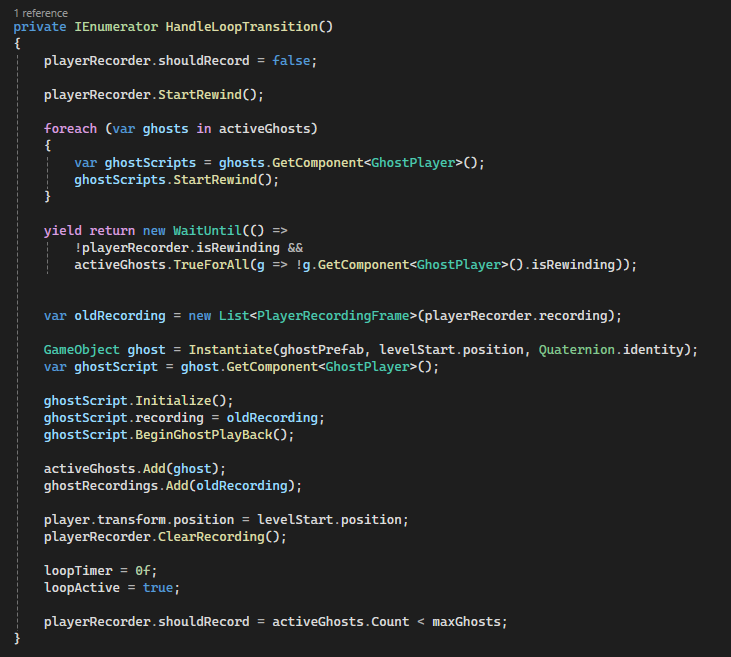

• HandleLoopTransition() – coordinates rewind, ghost creation, and playback.

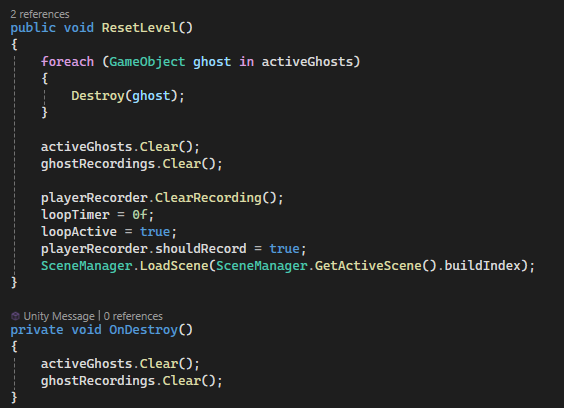

• ResetLevel() – cleans up ghosts, recordings, and resets the player.
• activeGhosts & ghostRecordings – store runtime ghost state for management.

Why it’s done this way

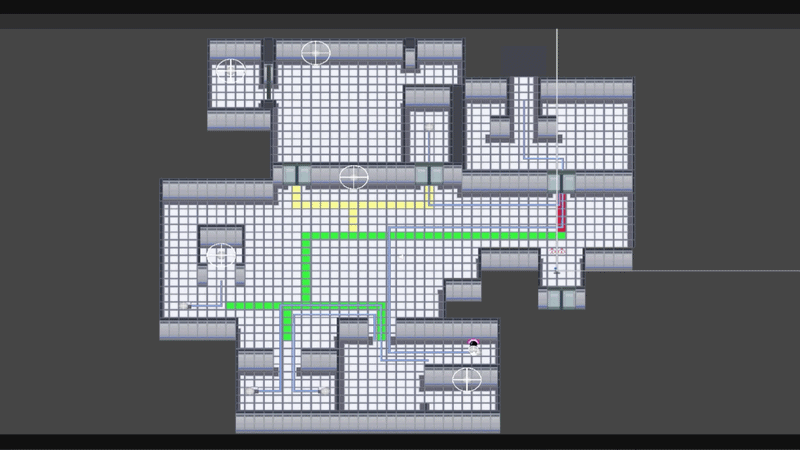

• Frame interpolation prevents jitter caused by discrete recordings.
• Playback is time-driven rather than frame-driven for consistency.
• Ghosts are physics-isolated to avoid unintended interactions.
• Interaction replay ensures puzzles remain deterministic.

How it works

• Time-based playback:
  • Playback uses an elapsed time counter divided by a fixed interval.
  • Base frames are calculated dynamically to support interpolation.
• Frame interpolation:
  • Position and rotation are interpolated using Lerp.
  • Animation parameters (X/Y speed) are smoothly blended.
  • Sprite flipping preserves directional intent.
• Interaction replay:
  • Ghosts replay recorded interaction presses.
  • Radius-based checks ensure correct interactable selection.
  • State tracking prevents duplicate presses within a single frame.
• Ghost rewind support:
  • Ghosts themselves can rewind during loop resets.
  • Rewind traverses recorded frames in reverse order.
  • Playback resumes automatically after rewind completion.

Collision & Safety

• Ghosts are assigned to a dedicated physics layer.
• Ghost–player and ghost–ghost collisions are ignored.
• Rigidbodies are set to kinematic to avoid physics drift.

Code Snippets

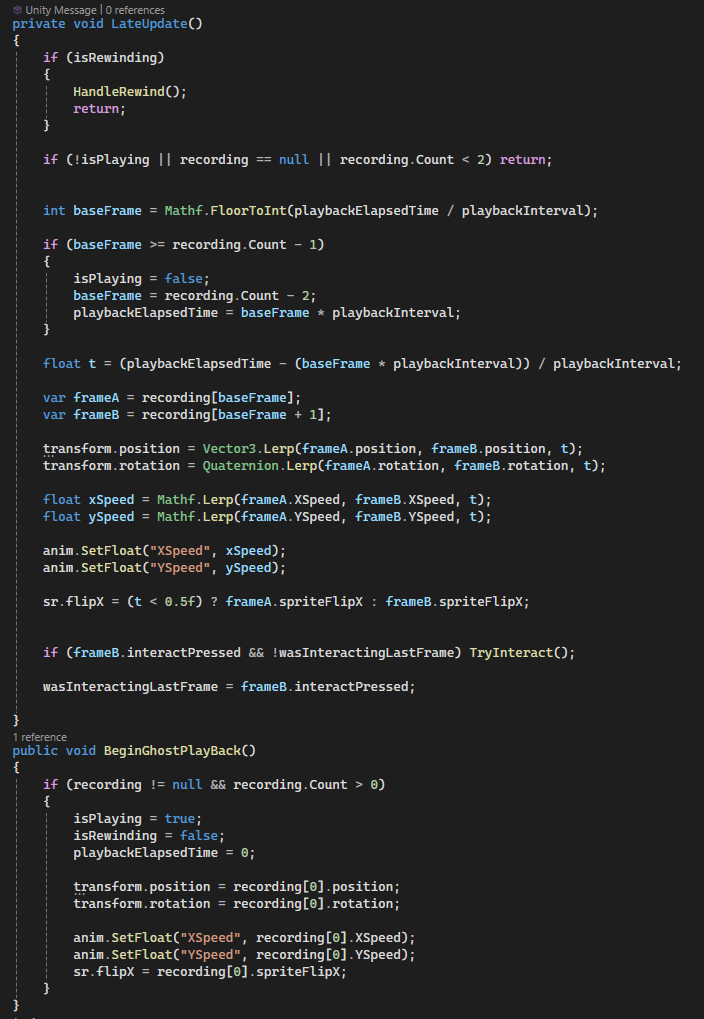

• LateUpdate() – interpolated playback loop

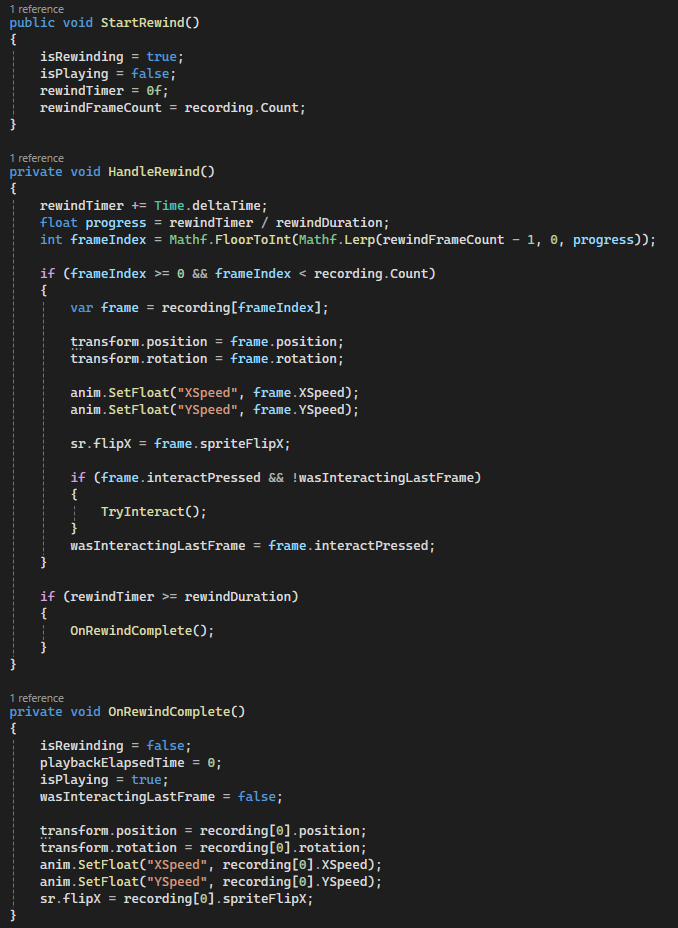

• HandleRewind() – reverse traversal of recorded frames

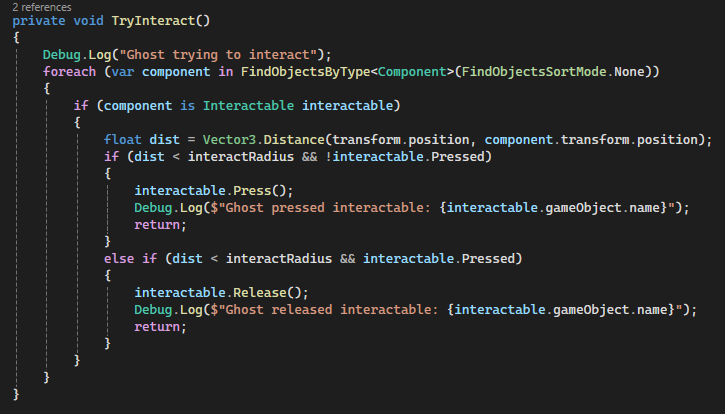

• TryInteract() – deterministic interaction replay
• SetGhostLayerCollision() – physics isolation

Why it’s done this way

• Abstract interactables decouple input (press/release) from puzzle effects (doors, mirrors, lasers).
• Supports multi-timeline consistency: ghosts can trigger the same interactions as the player.
• Visual feedback via sprite changes reinforces player understanding of puzzle state.
• Audio feedback provides intuitive cues for successful interaction.

How it works

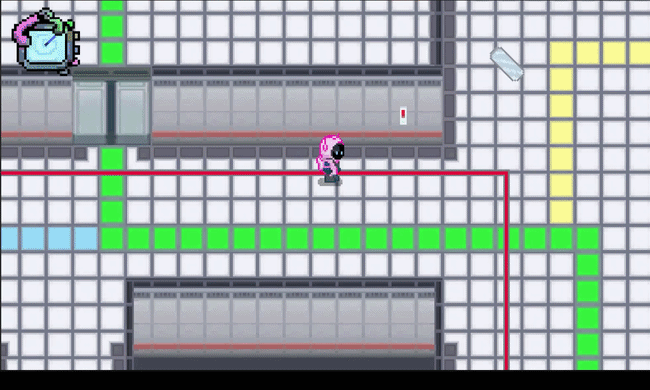

• Interactable Types:
  • Button – single-press triggers an effect with audio feedback.
  • Switch – toggles target states; can remain on or off.
  • Plate – pressure-sensitive; automatically releases when no objects are pressing.
• Targets:
  • Door – opens or closes with collision and visual feedback.
  • Mirror – rotates to reflect lasers when activated.
  • LaserEmitter – fires a laser beam that can activate other interactables via raycast hits.
• Ghost & Player Interaction:
  • Interactables track pressing objects (player or ghosts) to handle multi-timeline interactions.
  • Pressure plates and lasers maintain state per frame for deterministic puzzle solving.
• Visual & Audio Feedback:
  • Sprites switch between onSprite and offSprite states.
  • Sounds are played for each type: button press, switch flip, plate depression, door opening/closing.

Code Snippets

• Press() / Release() – handle state change and trigger effects.
• HandleInteractableType() – calls target-specific logic based on type.

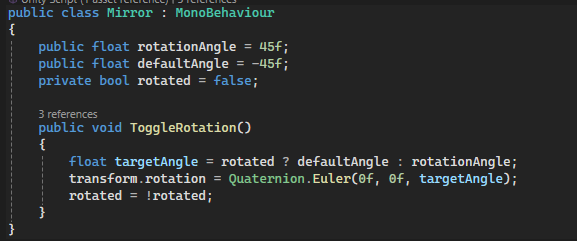

• ToggleDoor(), ToggleRotation(), ToggleLaser() – execute the puzzle effect.

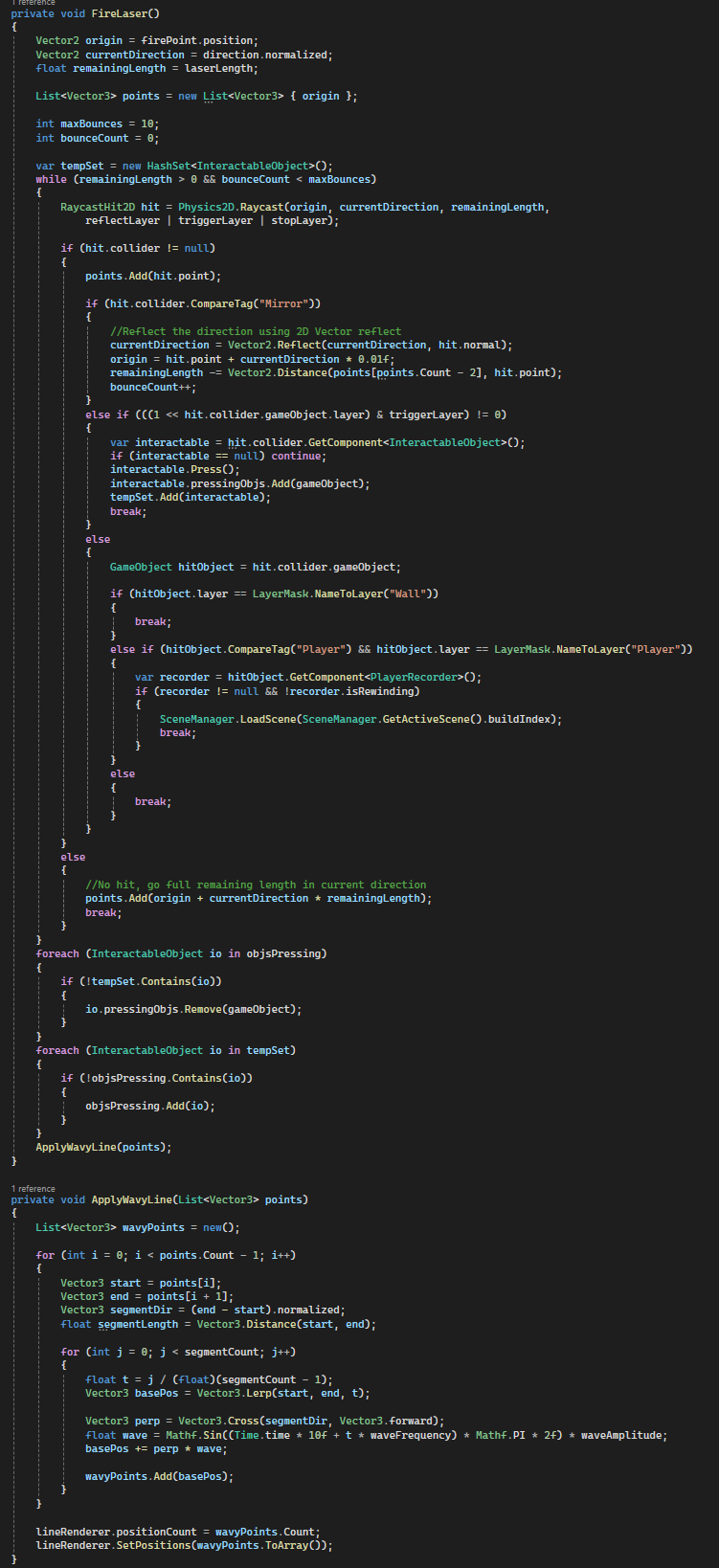

• LaserEmitter – raycasts with reflection and triggers interactables it hits.
